SCM PRESENTS Morbidelli CX110 and Morbidelli PWX500, expanding its drilling solutions to offer an innovative and highly specialised response to the needs of both craft businesses and the large furniture industry. The two new solutions are to be found at either end of the vast range of Morbidelli drilling machines: the CX110 model is mainly dedicated to companies that, regardless of their size and productivity volumes, desire a compact solution that is versatile, efficient and capable of solving all the critical issues of flexible machining; Morbidelli PWX500, on the other hand, is for large furniture manufacturers and contractors looking for high-speed, connected and integrated drilling solutions without sacrificing the quality of the finishing and precision.
Morbidelli CX110
The Morbidelli CX110 drilling machine offers maximum flexibility in performing any kind of vertical and horizontal drilling in less than 8 m2.
The shaped clamp makes machining much easier because it drastically reduces the cases in which it is necessary to reposition the clamp, reducing the cycle times. Another advantage is represented by RO.AX spindles fitted on the drilling heads, with a rotation speed that can reach 8,000 rpm, maintaining a very high finishing quality.
The operator can efficiently and easily manage batch 1 drilling operations while having all the necessary tools always on board and benefitting from the advantages of an automatic six-position tool changer.
The accessibility and ease of loading and handling the pieces is another distinctive plus: the machine is also ideal for those who need to machine lacquered and delicate panels because the new worktable has been designed to avoid any friction.
Drilling is done with extreme precision and the guarantee of always having the correct corresponding piece while the machine is operating, without the risk of slipping or bending. This happens thanks to a four-sensor 3D PROBE decimal probing system and a presser that ensures maximum workpiece stability during machining. This stability is guaranteed irrespective of the repositioning of the clamp and also in the most unusual and elaborate machining: the slide bearings act as a continuous guide, providing considerable help to the operator and reducing possible errors with piece linearity.
This new drilling machine is extremely versatile: available in several configurations, it can also be fitted with a new unit to create “Clamex” joints.

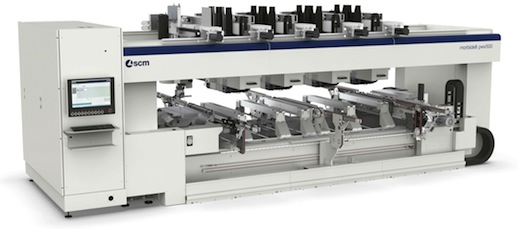

Morbidelli PWX500
The new Morbidelli PWX500 is considered an ideal drilling solution for connected and integrated production and to achieve highly competitive production standards per shift on medium and large batches.
Production ability has increased by 10% compared to market standards. In fact, the drilling machine is able to work intensively over several shifts and is designed to significantly reduce tooling changes and other operations that cause unproductive time. High productivity is guaranteed even by the automatic repositioning system which is completed in under 45 seconds, including dowelling.
Reliability is another significant advantage: the system has been designed to have fewer moving components compared to standard ones, so fewer risks of damage over time.
This new drilling machine is also synonymous with high efficiency: indeed, it is believed to be the only one on the market to offer up to five rows of spindles on the right and left in order to reach the extremities of the panel to make structural holes according to different production needs. Efficiency and high productivity combine with a considerable machining simplicity thanks to the optimiser software that controls the entire machine’s set up, the drilling steps and the integration of production lines consisting of several machines.
The new Morbidelli PWX500 is also extremely adaptable: the panel drilling occurs with a FLEX transport and positioning system that automatically adapts to the piece’s specifications, with the possibility of positioning the panel in one or more positions along Y axis.
Effectiveness is another key word: the panel is machined with 10 drilling units rapidly completing any furniture installation diagram thanks to the M-type heads and electro-spindle with tool changer. Lastly, the model can be highly customised: over 450 drilling tools can be fitted, 6+6 separate dowel insertion units, two workstations and different servo system levels.
The best tool position on the heads, depending on the client’s production batches, is identified by a powerful and innovative optimiser: Maestro Powerset. This software satisfies a specific demand: facilitating and speeding up the set-up operation of the bits on the machine and providing the plant with flexibility.
New Maestro 3Drill software
As well as the two new machines, SCM has integrated a new drilling software, Maestro 3Drill, to also apply the main advantages of Morbidelli numerically controlled programming software to drilling machines.
Some of the main advantages include the possibility of directly importing three dimensional solids with automatic recognition of the holes to be performed. This speeds up and simplifies the user’s programming experience.
